Description
Product Overview

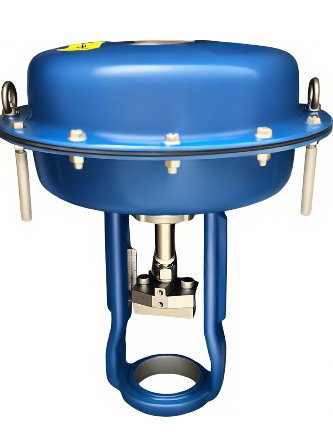

This Emerson-style pneumatic diaphragm actuator is a high-performance, linear-motion device designed to deliver precise, reliable control for industrial control valves. Built to meet the demands of chemical, petrochemical, power, and water treatment processes, it converts air pressure into mechanical motion, enabling accurate throttling, shutoff, and regulation of fluid, gas, and steam media.
Engineered with a rugged cast-iron housing, reinforced diaphragm assembly, and precision stem guidance, this actuator offers consistent performance under varying pressure and temperature conditions. It supports direct or reverse action and is compatible with most control valve bodies, making it a versatile choice for both new installations and retrofits.
Key Features
Precise Control & High Reliability: Low-friction design and balanced diaphragm ensure smooth, repeatable positioning for tight process control.
Robust Construction: Corrosion-resistant coated housing, heavy-duty fasteners, and lifting eyes for easy installation and maintenance.
Wide Operating Range: Compatible with standard instrument air supply (20–100 kPa / 3–15 psi), with options for custom bench set pressures.
Flexible Configuration: Supports direct/reverse action, and can be paired with positioners, limit switches, solenoid valves, or I/P converters for automated control.
Long Service Life: Wear-resistant stem packing and durable diaphragm material reduce maintenance needs, even in continuous operation.
Easy Maintenance: Modular design allows quick access to internal components, minimizing downtime during inspections or repairs.
Typical Applications
Petrochemical & Refining Processes
Chemical Processing Plants
Power Generation (Steam & Gas)
Water & Wastewater Treatment
HVAC & Building Automation
Pharmaceutical & Food & Beverage Industries
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Pneumatic Diaphragm Actuator (Linear Motion) |
| Action | Direct / Reverse Action |
| Supply Pressure | 20–100 kPa (3–15 psi) standard, custom ranges available |
| Housing Material | Cast Iron / Cast Steel (coated for corrosion resistance) |
| Diaphragm Material | Nitrile / EPDM (high-temperature options available) |
| Stem Material | Stainless Steel |
| Temperature Range | -40°C to +120°C (varies by diaphragm material) |
| Actuator Size | 300~1000 cm² (custom sizes on request) |
| Compatibility | Fits most globe/control valve bodies, including Emerson-style valve designs |
Why Choose This Actuator?
This diaphragm actuator combines Emerson-level performance with cost-effective reliability, making it ideal for both OEM and replacement applications. Its proven design ensures stable control, minimal drift, and compatibility with standard control accessories, so you can build a complete, high-efficiency process control system.
Contact our team today to discuss custom sizing, accessories (positioners, switches), or bulk pricing for your project,also asked us for EMERSON or branded actuator and valve.
