Product Introduction

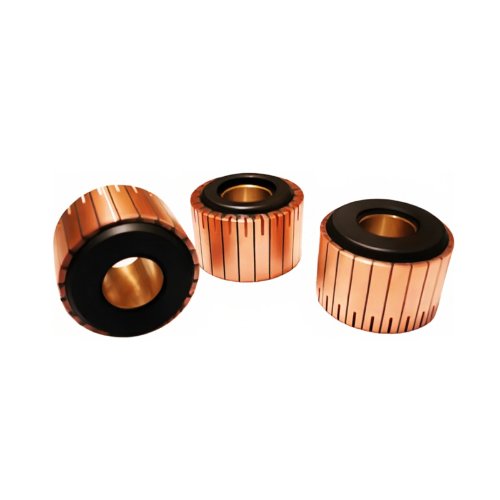

The segmented commutator for power tools is a critical core component specifically engineered for electric tool motors, playing a key role in converting electrical energy into mechanical power to drive power tools such as electric drills, grinders and screwdrivers. Adopting a scientific multi-segment structural design, it is made of high-purity electrolytic copper and high-performance mica insulation materials, combined with precision CNC machining, segment pressing and thermal treatment processes. This commutator effectively realizes stable current commutation, ensures the electromagnetic torque direction remains consistent, and enables the power tool motor to run continuously and stably under high load and high speed conditions. With strict dimensional tolerance control and robust structural design, it can withstand frequent start-stop, impact and vibration during power tool operation, adapting to the harsh working environment of industrial and household power tools, and comprehensively extending the service life of the power tool motor. Segmented Commutator for Power Tools, Tang Commutator.Segmented Commutator,Slotted Commutator
Key Features
-
Precision Multi-Segment Design: Uniform segment distribution, reasonable segment spacing, embedded with high-performance mica insulation between segments to prevent short circuit, ensuring stable current commutation and smooth operation of power tool motors.
-
Premium Copper Material: Adopts high-purity electrolytic copper, excellent electrical conductivity (contact resistance ≤0.5 mΩ) and thermal conductivity, reducing energy loss and ensuring efficient power transmission during high-load operation.
-
Strong Anti-Impact & Vibration Resistance: Optimized structural design enhances mechanical strength, able to withstand frequent impact and vibration (20-2000Hz) during power tool use, ensuring stable performance without damage.
-
High Temperature & Wear Resistance: High temperature resistance up to 300℃, anti-oxidation and low wear rate, able to adapt to long-term high-speed operation of power tools, reducing replacement frequency and maintenance cost.
-
Strict Precision Control: Advanced CNC machining and online visual inspection, strict radial run-out control (≤0.05mm), perfect fit with power tool armature and carbon brushes, easy installation and replacement.
-
Model Compatibility & Customization: Widely compatible with various power tools (electric drills, grinders, screwdrivers, garden tools), OEM/ODM services available, customized segment number, size and material according to customer’s power tool models.
Application Fields
Our segmented commutator for power tools is specially designed for electric tool motors, widely applied in various power tool types and related fields, including but not limited to:
-
Handheld Power Tools: Electric drills, electric screwdrivers, angle grinders, impact wrenches and rotary hammers.
-
Garden Tools: Electric lawn mowers, hedge trimmers, leaf blowers and pruning shears.
-
Industrial Power Tools: Heavy-duty grinders, electric saws and professional construction power tools.
-
Power Tool Maintenance: Replacement parts for power tool commutators, matching original specifications for easy replacement.
-
Power Tool Manufacturing: Supporting components for new power tool production, meeting industrial quality standards.
